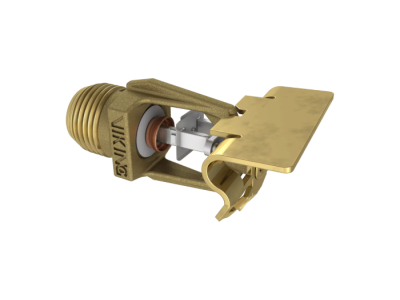

VK609
Product Variants
- SAP number 13971JNC
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Finish ENT
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Horizontal sidewall
- Response Standard/Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 74
- SAP number 13971JNE
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Finish ENT
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Horizontal sidewall
- Response Standard/Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 96
- SAP number 13971AC
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Finish Brass
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Horizontal sidewall
- Response Standard/Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 74
- SAP number 13971AE
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Finish Brass
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Horizontal sidewall
- Response Standard/Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 96
- SAP number 13971FC
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Finish Chrome
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Horizontal sidewall
- Response Standard/Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 74
- SAP number 13971FE
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Finish Chrome
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Horizontal sidewall
- Response Standard/Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 96
- SAP number 13971MC/B
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Finish Black
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Horizontal sidewall
- Response Standard/Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 74
- SAP number 13971MC/W
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Finish White
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Horizontal sidewall
- Response Standard/Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 74
- SAP number 13971ME/B
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Finish Black
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Horizontal sidewall
- Response Standard/Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 96
- SAP number 13971ME/W
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Finish White
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 12
- Position Horizontal sidewall
- Response Standard/Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 96
| SAP number | Application detail | Connection | Connection type | Finish | K factor metric | K factor nominal | Main material | Maximum working pressure | Position | Response | Size | Size 2 | Temperature rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13971JNC | Extended Coverage |
Threaded |
NPT |
ENT |
80 |
5.6 |
Brass |
12 |
Horizontal sidewall |
Standard/Quick |
1/2″ |
1/2″ |
74 |
| 13971JNE | Extended Coverage |
Threaded |
NPT |
ENT |
80 |
5.6 |
Brass |
12 |
Horizontal sidewall |
Standard/Quick |
1/2″ |
1/2″ |
96 |
| 13971AC | Extended Coverage |
Threaded |
NPT |
Brass |
80 |
5.6 |
Brass |
12 |
Horizontal sidewall |
Standard/Quick |
1/2″ |
1/2″ |
74 |
| 13971AE | Extended Coverage |
Threaded |
NPT |
Brass |
80 |
5.6 |
Brass |
12 |
Horizontal sidewall |
Standard/Quick |
1/2″ |
1/2″ |
96 |
| 13971FC | Extended Coverage |
Threaded |
NPT |
Chrome |
80 |
5.6 |
Brass |
12 |
Horizontal sidewall |
Standard/Quick |
1/2″ |
1/2″ |
74 |
| 13971FE | Extended Coverage |
Threaded |
NPT |
Chrome |
80 |
5.6 |
Brass |
12 |
Horizontal sidewall |
Standard/Quick |
1/2″ |
1/2″ |
96 |
| 13971MC/B | Extended Coverage |
Threaded |
NPT |
Black |
80 |
5.6 |
Brass |
12 |
Horizontal sidewall |
Standard/Quick |
1/2″ |
1/2″ |
74 |
| 13971MC/W | Extended Coverage |
Threaded |
NPT |
White |
80 |
5.6 |
Brass |
12 |
Horizontal sidewall |
Standard/Quick |
1/2″ |
1/2″ |
74 |
| 13971ME/B | Extended Coverage |
Threaded |
NPT |
Black |
80 |
5.6 |
Brass |
12 |
Horizontal sidewall |
Standard/Quick |
1/2″ |
1/2″ |
96 |
| 13971ME/W | Extended Coverage |
Threaded |
NPT |
White |
80 |
5.6 |
Brass |
12 |
Horizontal sidewall |
Standard/Quick |
1/2″ |
1/2″ |
96 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
