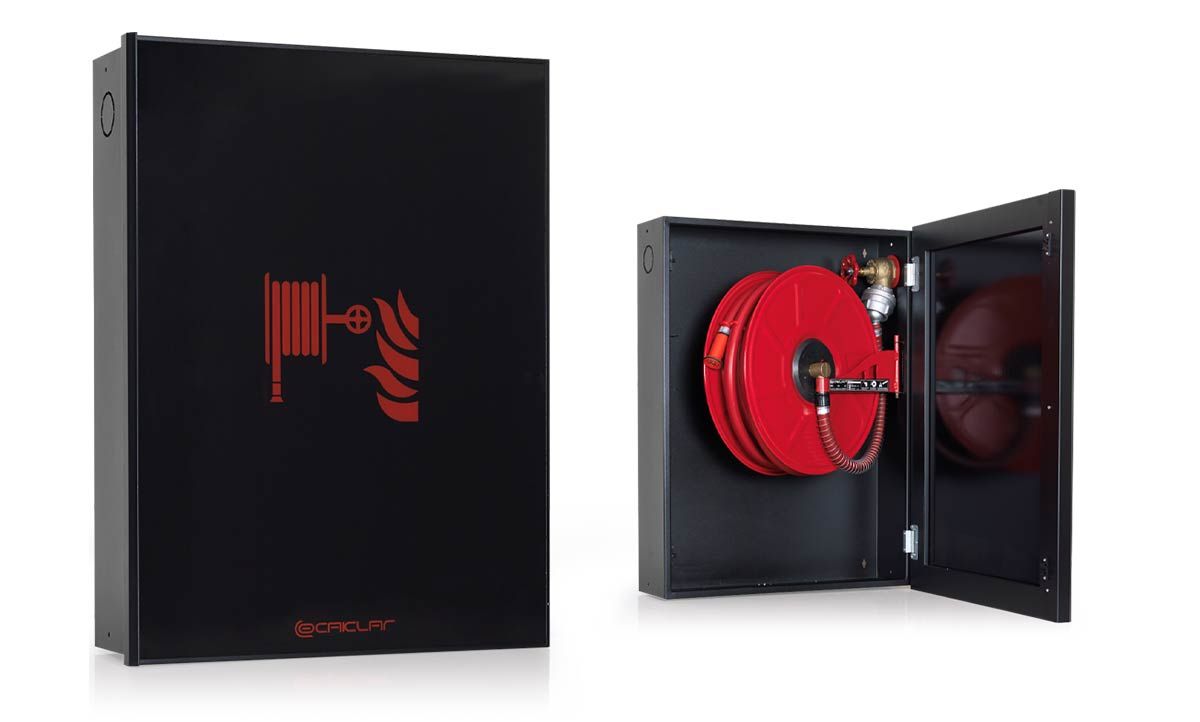

OFC-31 Fire Hose Cabinet


Features

  • Aesthetic, stylish, functional, and durable OCAKLAR specially designed fire cabinet.

  • The fire cabinet is manufactured from DKP sheet steel. Galvanized sheet steel or 304 stainless steel can also be used upon request.

  • There are entry holes at all four corners of the fire cabinet body, with dimensions as specified in the technical drawing.

  • Fire cabinet equipped with a 1" semi-rigid rubber hose in lengths of 15, 20, 25, or 30 meters, compliant with TS EN 694.

  • A 1" ball valve or, optionally, a 2" valve manufactured from brass in accordance with TS EN 12259, with an aluminum coupling and a 2" to 1" adapter, can be used.

  • 1" three-position jet spray nozzle.

  • Before painting, the fire cabinet is treated with a nanotechnology coating for corrosion protection and finished with 70-micron RAL 3002 electrostatic powder coating.

  • The fire cabinet is CE certified and compliant with TS EN 671-1.

  • Hose reel capable of rotating 90° + 270°.

  • The reel has a maximum operating pressure of 12 bar (1.2 MPa), test pressure of 18 bar (1.8 MPa), and minimum burst pressure of 30 bar (3.0 MPa).

Detailed Information

Detailed Information

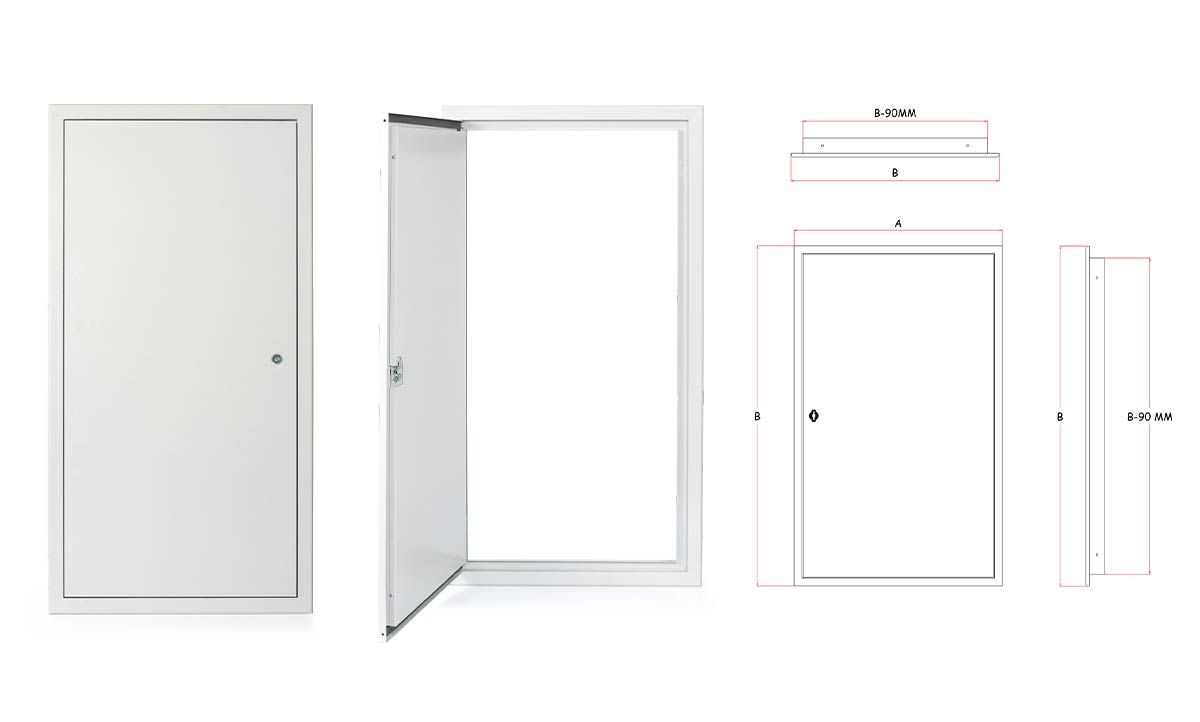

Drawings

Drawings
