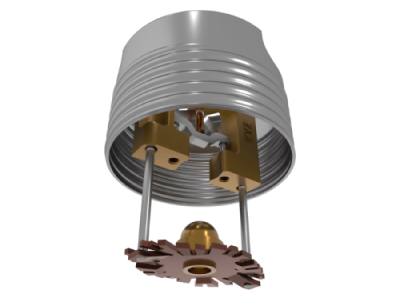

VK4921
Product Variants
- SAP number 23116AB
- Application detail Standard Coverage
- Connection Threaded
- Connection type BSP
- Finish Brass
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 17.2
- Position Pendent
- Response Standard
- Size 15 mm
- Size 2 15 mm
- Temperature rating 68
- SAP number 23116AD
- Application detail Standard Coverage
- Connection Threaded
- Connection type BSP
- Finish Brass
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 17.2
- Position Pendent
- Response Standard
- Size 15 mm
- Size 2 15 mm
- Temperature rating 79
- SAP number 23116AE
- Application detail Standard Coverage
- Connection Threaded
- Connection type BSP
- Finish Brass
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 17.2
- Position Pendent
- Response Standard
- Size 15 mm
- Size 2 15 mm
- Temperature rating 93
- SAP number 23116JNB
- Application detail Standard Coverage
- Connection Threaded
- Connection type BSP
- Finish ENT
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 17.2
- Position Pendent
- Response Standard
- Size 15 mm
- Size 2 15 mm
- Temperature rating 68
- SAP number 23116JND
- Application detail Standard Coverage
- Connection Threaded
- Connection type BSP
- Finish ENT
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 17.2
- Position Pendent
- Response Standard
- Size 15 mm
- Size 2 15 mm
- Temperature rating 79
- SAP number 23116JNE
- Application detail Standard Coverage
- Connection Threaded
- Connection type BSP
- Finish ENT
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 17.2
- Position Pendent
- Response Standard
- Size 15 mm
- Size 2 15 mm
- Temperature rating 93
- SAP number 24683AB
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Brass
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 17.2
- Position Pendent
- Response Standard
- Size 1/2″
- Size 2 1/2″
- Temperature rating 68
- SAP number 24683AD
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Brass
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 17.2
- Position Pendent
- Response Standard
- Size 1/2″
- Size 2 1/2″
- Temperature rating 79
- SAP number 24683AE
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Brass
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 17.2
- Position Pendent
- Response Standard
- Size 1/2″
- Size 2 1/2″
- Temperature rating 93
- SAP number 24683JNB
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish ENT
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 17.2
- Position Pendent
- Response Standard
- Size 1/2″
- Size 2 1/2″
- Temperature rating 68
- SAP number 24683JND
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish ENT
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 17.2
- Position Pendent
- Response Standard
- Size 1/2″
- Size 2 1/2″
- Temperature rating 79
- SAP number 24683JNE
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish ENT
- K factor metric 80
- K factor nominal 5.6
- Main material Brass
- Maximum working pressure 17.2
- Position Pendent
- Response Standard
- Size 1/2″
- Size 2 1/2″
- Temperature rating 93
| SAP number | Application detail | Connection | Connection type | Finish | K factor metric | K factor nominal | Main material | Maximum working pressure | Position | Response | Size | Size 2 | Temperature rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 23116AB | Standard Coverage |
Threaded |
BSP |
Brass |
80 |
5.6 |
Brass |
17.2 |
Pendent |
Standard |
15 mm |
15 mm |
68 |
| 23116AD | Standard Coverage |
Threaded |
BSP |
Brass |
80 |
5.6 |
Brass |
17.2 |
Pendent |
Standard |
15 mm |
15 mm |
79 |
| 23116AE | Standard Coverage |
Threaded |
BSP |
Brass |
80 |
5.6 |
Brass |
17.2 |
Pendent |
Standard |
15 mm |
15 mm |
93 |
| 23116JNB | Standard Coverage |
Threaded |
BSP |
ENT |
80 |
5.6 |
Brass |
17.2 |
Pendent |
Standard |
15 mm |
15 mm |
68 |
| 23116JND | Standard Coverage |
Threaded |
BSP |
ENT |
80 |
5.6 |
Brass |
17.2 |
Pendent |
Standard |
15 mm |
15 mm |
79 |
| 23116JNE | Standard Coverage |
Threaded |
BSP |
ENT |
80 |
5.6 |
Brass |
17.2 |
Pendent |
Standard |
15 mm |
15 mm |
93 |
| 24683AB | Standard Coverage |
Threaded |
NPT |
Brass |
80 |
5.6 |
Brass |
17.2 |
Pendent |
Standard |
1/2″ |
1/2″ |
68 |
| 24683AD | Standard Coverage |
Threaded |
NPT |
Brass |
80 |
5.6 |
Brass |
17.2 |
Pendent |
Standard |
1/2″ |
1/2″ |
79 |
| 24683AE | Standard Coverage |
Threaded |
NPT |
Brass |
80 |
5.6 |
Brass |
17.2 |
Pendent |
Standard |
1/2″ |
1/2″ |
93 |
| 24683JNB | Standard Coverage |
Threaded |
NPT |
ENT |
80 |
5.6 |
Brass |
17.2 |
Pendent |
Standard |
1/2″ |
1/2″ |
68 |
| 24683JND | Standard Coverage |
Threaded |
NPT |
ENT |
80 |
5.6 |
Brass |
17.2 |
Pendent |
Standard |
1/2″ |
1/2″ |
79 |
| 24683JNE | Standard Coverage |
Threaded |
NPT |
ENT |
80 |
5.6 |
Brass |
17.2 |
Pendent |
Standard |
1/2″ |
1/2″ |
93 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
