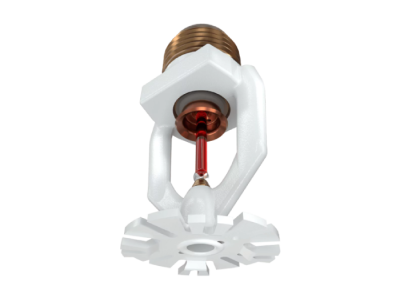

VK4700
Product Variants
- SAP number 17492AB
- Application detail Residential
- Connection Threaded
- Connection type NPT
- Finish Brass
- K factor metric 43
- K factor nominal 3
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Residential
- Size 1/2″
- Size 2 1/2″
- Temperature rating 68
- SAP number 17492AD
- Application detail Residential
- Connection Threaded
- Connection type NPT
- Finish Brass
- K factor metric 43
- K factor nominal 3
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Residential
- Size 1/2″
- Size 2 1/2″
- Temperature rating 79
- SAP number 17492FB
- Application detail Residential
- Connection Threaded
- Connection type NPT
- Finish Chrome
- K factor metric 43
- K factor nominal 3
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Residential
- Size 1/2″
- Size 2 1/2″
- Temperature rating 68
- SAP number 17492FD
- Application detail Residential
- Connection Threaded
- Connection type NPT
- Finish Chrome
- K factor metric 43
- K factor nominal 3
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Residential
- Size 1/2″
- Size 2 1/2″
- Temperature rating 79
- SAP number 17492MB/W
- Application detail Residential
- Connection Threaded
- Connection type NPT
- Finish White
- K factor metric 43
- K factor nominal 3
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Residential
- Size 1/2″
- Size 2 1/2″
- Temperature rating 68
- SAP number 17492MD/W
- Application detail Residential
- Connection Threaded
- Connection type NPT
- Finish White
- K factor metric 43
- K factor nominal 3
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Residential
- Size 1/2″
- Size 2 1/2″
- Temperature rating 79
| SAP number | Application detail | Connection | Connection type | Finish | K factor metric | K factor nominal | Main material | Maximum working pressure | Position | Response | Size | Size 2 | Temperature rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17492AB | Residential |
Threaded |
NPT |
Brass |
43 |
3 |
Brass |
12 |
Pendent |
Residential |
1/2″ |
1/2″ |
68 |
| 17492AD | Residential |
Threaded |
NPT |
Brass |
43 |
3 |
Brass |
12 |
Pendent |
Residential |
1/2″ |
1/2″ |
79 |
| 17492FB | Residential |
Threaded |
NPT |
Chrome |
43 |
3 |
Brass |
12 |
Pendent |
Residential |
1/2″ |
1/2″ |
68 |
| 17492FD | Residential |
Threaded |
NPT |
Chrome |
43 |
3 |
Brass |
12 |
Pendent |
Residential |
1/2″ |
1/2″ |
79 |
| 17492MB/W | Residential |
Threaded |
NPT |
White |
43 |
3 |
Brass |
12 |
Pendent |
Residential |
1/2″ |
1/2″ |
68 |
| 17492MD/W | Residential |
Threaded |
NPT |
White |
43 |
3 |
Brass |
12 |
Pendent |
Residential |
1/2″ |
1/2″ |
79 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
