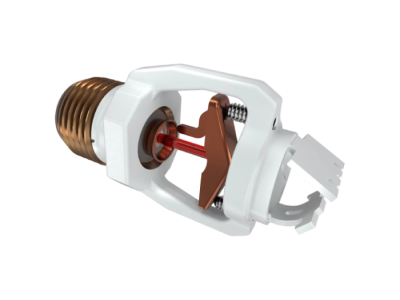

VK460
Product Variants
- SAP number 13933JNB
- Temperature rating 68
- K factor nominal 5.8
- K factor metric 84
- Finish ENT
- Position Horizontal sidewall
- Response Residential
- Application detail Residential
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 1/2″
- Size 2 1/2″
- SAP number 13933JND
- Temperature rating 79
- K factor nominal 5.8
- K factor metric 84
- Finish ENT
- Position Horizontal sidewall
- Response Residential
- Application detail Residential
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 1/2″
- Size 2 1/2″
- SAP number 13933MB/B
- Temperature rating 68
- K factor nominal 5.8
- K factor metric 84
- Finish Black
- Position Horizontal sidewall
- Response Residential
- Application detail Residential
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 1/2″
- Size 2 1/2″
- SAP number 13933MB/RAL9010
- Temperature rating 68
- K factor nominal 5.8
- K factor metric 84
- Finish Pure white RAL9010
- Position Horizontal sidewall
- Response Residential
- Application detail Residential
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 1/2″
- Size 2 1/2″
- SAP number 13933MD/B
- Temperature rating 79
- K factor nominal 5.8
- K factor metric 84
- Finish Black
- Position Horizontal sidewall
- Response Residential
- Application detail Residential
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 1/2″
- Size 2 1/2″
| SAP number | Application detail | Connection | Connection type | Finish | K factor metric | K factor nominal | Main material | Maximum working pressure | Position | Response | Size | Size 2 | Temperature rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13933JNB | Residential |
Threaded |
NPT |
ENT |
84 |
5.8 |
Brass |
12 |
Horizontal sidewall |
Residential |
1/2″ |
1/2″ |
68 |
| 13933JND | Residential |
Threaded |
NPT |
ENT |
84 |
5.8 |
Brass |
12 |
Horizontal sidewall |
Residential |
1/2″ |
1/2″ |
79 |
| 13933MB/B | Residential |
Threaded |
NPT |
Black |
84 |
5.8 |
Brass |
12 |
Horizontal sidewall |
Residential |
1/2″ |
1/2″ |
68 |
| 13933MB/RAL9010 | Residential |
Threaded |
NPT |
Pure white RAL9010 |
84 |
5.8 |
Brass |
12 |
Horizontal sidewall |
Residential |
1/2″ |
1/2″ |
68 |
| 13933MD/B | Residential |
Threaded |
NPT |
Black |
84 |
5.8 |
Brass |
12 |
Horizontal sidewall |
Residential |
1/2″ |
1/2″ |
79 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
