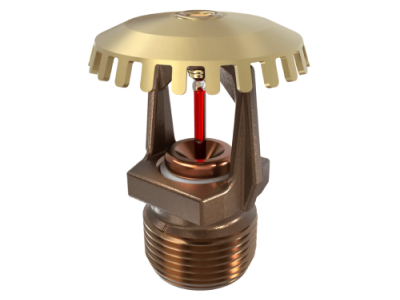

VK531
Product Variants
- SAP number 10633NB
- Temperature rating 68
- K factor nominal 11,2
- K factor metric 161
- Finish Black PTFE
- Position Upright
- Response Quick
- Application detail Storage
- Connection
- Connection type
- Main material
- Maximum working pressure
- Size
- Size 2
- SAP number 10633ND
- Temperature rating 79
- K factor nominal 11,2
- K factor metric 161
- Finish Black PTFE
- Position Upright
- Response Quick
- Application detail Storage
- Connection
- Connection type
- Main material
- Maximum working pressure
- Size
- Size 2
- SAP number 10633NG
- Temperature rating 141
- K factor nominal 11,2
- K factor metric 161
- Finish Black PTFE
- Position Upright
- Response Quick
- Application detail Storage
- Connection
- Connection type
- Main material
- Maximum working pressure
- Size
- Size 2
- SAP number 10633NE
- Temperature rating 93
- K factor nominal 11,2
- K factor metric 161
- Finish Black PTFE
- Position Upright
- Response Quick
- Application detail Storage
- Connection
- Connection type
- Main material
- Maximum working pressure
- Size
- Size 2
- SAP number 10633AB
- Temperature rating 68
- K factor nominal 11.2
- K factor metric 160
- Finish Brass
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633AD
- Temperature rating 79
- K factor nominal 11.2
- K factor metric 160
- Finish Brass
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633AE
- Temperature rating 93
- K factor nominal 11.2
- K factor metric 160
- Finish Brass
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633AG
- Temperature rating 141
- K factor nominal 11.2
- K factor metric 160
- Finish Brass
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633FB
- Temperature rating 68
- K factor nominal 11.2
- K factor metric 160
- Finish Chrome
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633FD
- Temperature rating 79
- K factor nominal 11.2
- K factor metric 160
- Finish Chrome
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633FE
- Temperature rating 93
- K factor nominal 11.2
- K factor metric 160
- Finish Chrome
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633FG
- Temperature rating 141
- K factor nominal 11.2
- K factor metric 160
- Finish Chrome
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633JNB
- Temperature rating 68
- K factor nominal 11.2
- K factor metric 160
- Finish ENT
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633JND
- Temperature rating 79
- K factor nominal 11.2
- K factor metric 160
- Finish ENT
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633JNE
- Temperature rating 93
- K factor nominal 11.2
- K factor metric 160
- Finish ENT
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633JNG
- Temperature rating 141
- K factor nominal 11.2
- K factor metric 160
- Finish ENT
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633MB/B
- Temperature rating 68
- K factor nominal 11.2
- K factor metric 160
- Finish Black
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633MB/W
- Temperature rating 68
- K factor nominal 11.2
- K factor metric 160
- Finish White
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633MD/W
- Temperature rating 79
- K factor nominal 11.2
- K factor metric 160
- Finish White
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633ME/B
- Temperature rating 93
- K factor nominal 11.2
- K factor metric 160
- Finish Black
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633ME/W
- Temperature rating 93
- K factor nominal 11.2
- K factor metric 160
- Finish White
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633MG/B
- Temperature rating 141
- K factor nominal 11.2
- K factor metric 160
- Finish Black
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 10633MG/W
- Temperature rating 141
- K factor nominal 11.2
- K factor metric 160
- Finish White
- Position Upright
- Response Quick
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
| SAP number | Application detail | Connection | Connection type | Finish | K factor metric | K factor nominal | Main material | Maximum working pressure | Position | Response | Size | Size 2 | Temperature rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10633NB | Storage |
Black PTFE |
161 |
11,2 |
Upright |
Quick |
68 |
||||||
| 10633ND | Storage |
Black PTFE |
161 |
11,2 |
Upright |
Quick |
79 |
||||||
| 10633NG | Storage |
Black PTFE |
161 |
11,2 |
Upright |
Quick |
141 |
||||||
| 10633NE | Storage |
Black PTFE |
161 |
11,2 |
Upright |
Quick |
93 |
||||||
| 10633AB | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
68 |
| 10633AD | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
79 |
| 10633AE | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
93 |
| 10633AG | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
141 |
| 10633FB | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
68 |
| 10633FD | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
79 |
| 10633FE | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
93 |
| 10633FG | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
141 |
| 10633JNB | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
68 |
| 10633JND | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
79 |
| 10633JNE | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
93 |
| 10633JNG | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
141 |
| 10633MB/B | Standard Coverage |
Threaded |
NPT |
Black |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
68 |
| 10633MB/W | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
68 |
| 10633MD/W | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
79 |
| 10633ME/B | Standard Coverage |
Threaded |
NPT |
Black |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
93 |
| 10633ME/W | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
93 |
| 10633MG/B | Standard Coverage |
Threaded |
NPT |
Black |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
141 |
| 10633MG/W | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Upright |
Quick |
3/4″ |
3/4″ |
141 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
