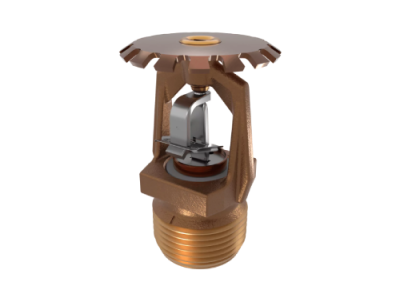

VK535
Product Variants
- SAP number 14139NC
- Temperature rating 74
- K factor nominal 11,2
- K factor metric 161
- Finish Black PTFE
- Position Upright
- Response Standard/Quick
- Application detail Storage
- Connection
- Connection type
- Main material
- Maximum working pressure
- Size
- Size 2
- SAP number 14139ME/B
- Temperature rating 93
- K factor nominal 11,2
- K factor metric 161
- Finish Black
- Position Upright
- Response Standard/Quick
- Application detail Storage
- Connection
- Connection type
- Main material
- Maximum working pressure
- Size
- Size 2
- SAP number 14139NE
- Temperature rating 93
- K factor nominal 11,2
- K factor metric 161
- Finish Black PTFE
- Position Upright
- Response Standard/Quick
- Application detail Storage
- Connection
- Connection type
- Main material
- Maximum working pressure
- Size
- Size 2
- SAP number 14139AC
- Temperature rating 74
- K factor nominal 11.2
- K factor metric 160
- Finish Brass
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 14139AE
- Temperature rating 96
- K factor nominal 11.2
- K factor metric 160
- Finish Brass
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 14139AG
- Temperature rating 138
- K factor nominal 11.2
- K factor metric 160
- Finish Brass
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 14139FC
- Temperature rating 74
- K factor nominal 11.2
- K factor metric 160
- Finish Chrome
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 14139FE
- Temperature rating 96
- K factor nominal 11.2
- K factor metric 160
- Finish Chrome
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 14139FG
- Temperature rating 138
- K factor nominal 11.2
- K factor metric 160
- Finish Chrome
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 14139JNC
- Temperature rating 74
- K factor nominal 11.2
- K factor metric 160
- Finish ENT
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 14139JNE
- Temperature rating 96
- K factor nominal 11.2
- K factor metric 160
- Finish ENT
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 14139JNG
- Temperature rating 138
- K factor nominal 11.2
- K factor metric 160
- Finish ENT
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 14139MC/B
- Temperature rating 74
- K factor nominal 11.2
- K factor metric 160
- Finish Black
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 14139MC/W
- Temperature rating 74
- K factor nominal 11.2
- K factor metric 160
- Finish White
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 14139ME/W
- Temperature rating 96
- K factor nominal 11.2
- K factor metric 160
- Finish White
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 14139MG/B
- Temperature rating 138
- K factor nominal 11.2
- K factor metric 160
- Finish Black
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
- SAP number 14139MG/W
- Temperature rating 138
- K factor nominal 11.2
- K factor metric 160
- Finish White
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type NPT
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2 3/4″
| SAP number | Application detail | Connection | Connection type | Finish | K factor metric | K factor nominal | Main material | Maximum working pressure | Position | Response | Size | Size 2 | Temperature rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14139NC | Storage |
Black PTFE |
161 |
11,2 |
Upright |
Standard/Quick |
74 |
||||||
| 14139ME/B | Storage |
Black |
161 |
11,2 |
Upright |
Standard/Quick |
93 |
||||||
| 14139NE | Storage |
Black PTFE |
161 |
11,2 |
Upright |
Standard/Quick |
93 |
||||||
| 14139AC | Extended Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
3/4″ |
74 |
| 14139AE | Extended Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
3/4″ |
96 |
| 14139AG | Extended Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
3/4″ |
138 |
| 14139FC | Extended Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
3/4″ |
74 |
| 14139FE | Extended Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
3/4″ |
96 |
| 14139FG | Extended Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
3/4″ |
138 |
| 14139JNC | Extended Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
3/4″ |
74 |
| 14139JNE | Extended Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
3/4″ |
96 |
| 14139JNG | Extended Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
3/4″ |
138 |
| 14139MC/B | Extended Coverage |
Threaded |
NPT |
Black |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
3/4″ |
74 |
| 14139MC/W | Extended Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
3/4″ |
74 |
| 14139ME/W | Extended Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
3/4″ |
96 |
| 14139MG/B | Extended Coverage |
Threaded |
NPT |
Black |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
3/4″ |
138 |
| 14139MG/W | Extended Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
3/4″ |
138 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
