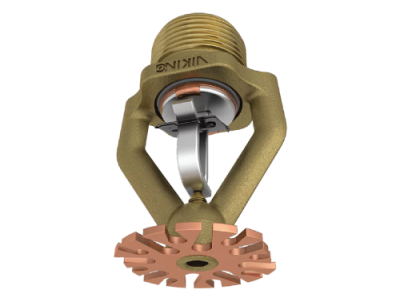

VK514
Product Variants
- SAP number 22894AC
- Application detail ESFR
- Connection Threaded
- Connection type NPT
- Finish Brass
- K factor metric 400
- K factor nominal 28
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response ESFR
- Size 1″
- Size 2 1″
- Temperature rating 74
- SAP number 22894AE
- Application detail ESFR
- Connection Threaded
- Connection type NPT
- Finish Brass
- K factor metric 400
- K factor nominal 28
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response ESFR
- Size 1″
- Size 2 1″
- Temperature rating 96
- SAP number 22958AC
- Application detail ESFR
- Connection Threaded
- Connection type BSP
- Finish Brass
- K factor metric 400
- K factor nominal 28
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response ESFR
- Size 25 mm
- Size 2 25 mm
- Temperature rating 74
- SAP number 22958AE
- Application detail ESFR
- Connection Threaded
- Connection type BSP
- Finish Brass
- K factor metric 400
- K factor nominal 28
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response ESFR
- Size 25 mm
- Size 2 25 mm
- Temperature rating 96
| SAP number | Application detail | Connection | Connection type | Finish | K factor metric | K factor nominal | Main material | Maximum working pressure | Position | Response | Size | Size 2 | Temperature rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22894AC | ESFR |
Threaded |
NPT |
Brass |
400 |
28 |
Brass |
12 |
Pendent |
ESFR |
1″ |
1″ |
74 |
| 22894AE | ESFR |
Threaded |
NPT |
Brass |
400 |
28 |
Brass |
12 |
Pendent |
ESFR |
1″ |
1″ |
96 |
| 22958AC | ESFR |
Threaded |
BSP |
Brass |
400 |
28 |
Brass |
12 |
Pendent |
ESFR |
25 mm |
25 mm |
74 |
| 22958AE | ESFR |
Threaded |
BSP |
Brass |
400 |
28 |
Brass |
12 |
Pendent |
ESFR |
25 mm |
25 mm |
96 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
