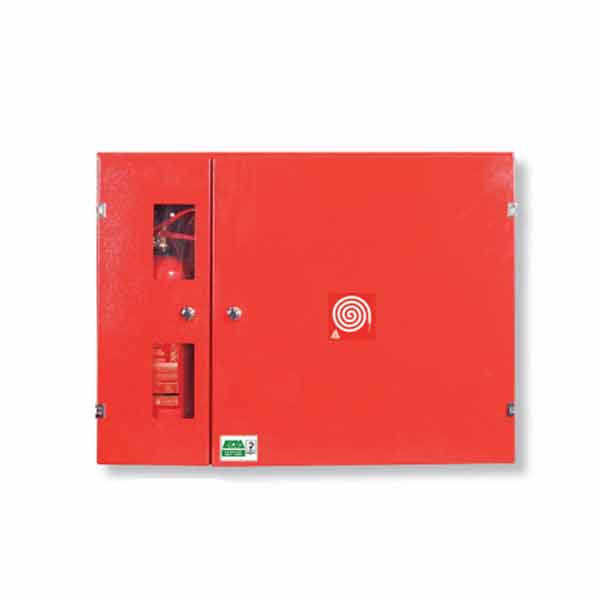

Water System Fire Cabinets ER-6SS

Water System Fire Cabinet ER-6SS
Fire Cabinet Specifications
  • 1.20 mm DKP sheet metal case and cover.
  • Two-year sealing guarantee.
  • 0.70 micron thick epoxy polyester electrostatic powder coating.
  • All stainless steel, ERSAN brand hub system made of forged brass material on CNC machines.
  • 1 mm DKP sheet press printing, three movable types (90˚ exit from the cupboard, 180˚ right and left rotation on the arm and 360˚ movement of hose unloading and winding), ERSAN brand hose reel.
  • TS EN 694 certified, round semi-hard red fire hose.
  • 1” ball type water shut-off valve (TS EN 33) or 2” corner type fire valve (TS EN 12259).
  • Pr.EN 671-1 standards produced, on / off and jet / spray ERSAN brand fog hood.
  • 90 cm long break hose between internally reinforced spool and valve.
  • Fire extinguisher compartment (optional cover with sheet or Plexiglas compartment).
  • Special design heavy type reel carrying handle.
  • Decorative type chrome plated or electrostatic powder paint hinges and handles.
  • Double-twisted and center-reinforced cover to prevent stretching.
  • Two pieces (available at the top and bottom), 70 mm
  • Installation holes.
  • Four connection holes for attaching the cabinet to the wall.
  • Doors with flush-mounted frame that can be retrofitted to the blind frame.
  • Easy to make plaster and paint with the blind casing embedded in the wall without frame.
  • Transparent Plexiglas or tempered glass cover. (optional)
  • Embossing brand and TSE symbols on cover plate and reel, press printing.
  • Markings and sticking instructions in accordance with the international standard 92/58 / EEC and TS EN.
  • Pressed, pressure-resistant hose connections with special steel sheet ferrules.
  • Installation and operating instructions.
  • Optional bubbles wrap nylon or carton packing
