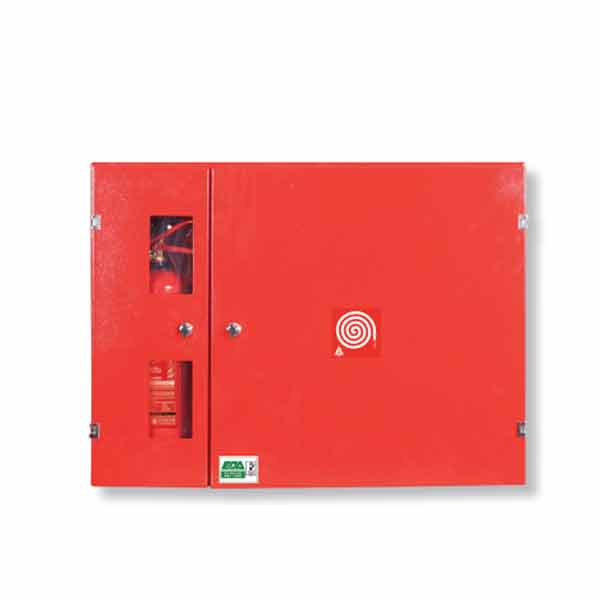

Dry System Fire Cabinets ER-24

Dry System Fire Cabinets ER-24
Fire Cabinet Specifications
  • 1.20 mm DKP sheet metal case and cover.
  • 0.70 micron thick epoxy polyester electrostatic powder coating.
  • 1 mm DKP steel sheet, three movable type, ERSAN brand hose reel.
  • 2 ”outer synthetic yarn knitted, inside rubber or PVC coating, TS 9222 certified,
  • 20 or 30 m long fire hose.
  • 2 ”German aluminum injection, TS 3145/1 certified, German aluminum injection
  • Fire hose with hose connection. (Optionally flat, controlled or operated / fog screened)
  • 2 ”body made of solid brass material, with German type aluminum injection, TS 12259 fire corner valve
  • Hose / sleeve connections with fire-fighting copper wire wrap.
  • Special design heavy type reel carrying handle.
  • Decorative type chrome plated or electrostatic powder paint hinges and handles.
  • Double-twisted and center-reinforced cover to prevent stretching.
  • Installation holes with a diameter of 70 mm which can be opened from the desired water inlet direction during installation.
  • Four connection holes for attaching the cabinet to the wall.
  • Built-in fixed frame.
  • Transparent plexglass or tempered glass cover. (Optional)
  • Ability to attach the reel carrying handle to the right or left.
  • Embossed brand and TSE symbols.
  • Marking according to 92/58 / EEC.
  • Installation and operating instructions.
  • Optional bubble wrap nylon or carton packing.
