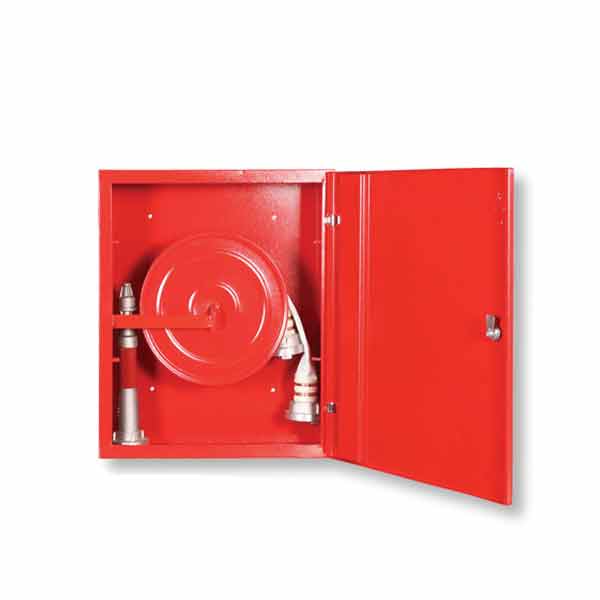

Dry System Fire Cabinets ER-20

Dry System- Fire-Cabinets-ER-20
Fire Cabinet Specifications
  • 1.20 mm DKP sheet metal case and cover.
  • 0.70 micron thick epoxy polyester electrostatic powder paint.
  • 1 mm DKP steel sheet, three movable type, ERSAN brand hose reel.
  • 2 ”outer synthetic yarn braided, inner rubber or PVC coating, TS 9222 certified,
  • 20 or 30 mt long fire hose.
  • 2 ”German aluminum injection, TS 3145/1 certified, German aluminum injection
  • Fire hose with hose connection. (optionally, plain, controlled or with controlled / fog screen)
  • 2 ”body made of brass material; German type aluminum injection union, TS 12259 certified
  • Fire corner valve.
  • Hose / sleeve connections with fire-fighting copper wire wrap.
  • Fire extinguisher compartment. (Optional sheet or plexglass compartment cover)
  • Special design heavy type reel carrying handle.
  • Decorative type chrome plated or electrostatic powder paint hinges and handles.
  • Double-twisted and center-reinforced cover to prevent stretching.
  • Two (70 mm diameter) installation holes (available at the top and bottom) that can be rotated to the desired water inlet direction during installation.
  • Four connection holes for attaching the cabinet to the wall.
  • Transparent plexglass or tempered glass cover. (optional)
  • Embossing brand and TSE symbols on cover sheet and reel, press printing.
  • Markings and affixing instructions in accordance with the international standard 92/58 / EEC and TS EN.
  • Installation and operating instructions.
  • Optional bubble wrap nylon or carton packing.
